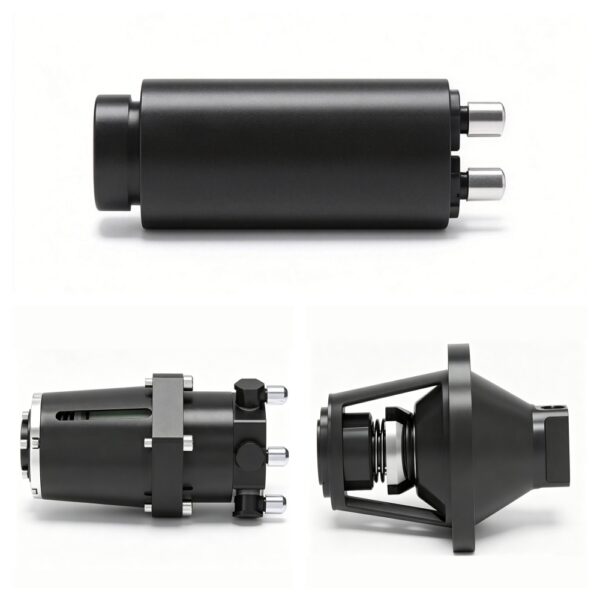

AB Series Deep-Sea Oil Compensation Unit
Industrial bladder-type oil compensator series with built-in preload, oil leakage alarm, aluminum/stainless steel housing, 10000m ultra-deep rating for ROV hydraulic systems.
Price range: $180.00 through $750.00
Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.
Available Options
| Thumbnail | SKU | Compensation Volume | Number of Ports | Housing Material | Built-in Preload | Oil Leakage Alarm | Compensation Method | Maximum Operating Depth | Dimensions | Weight | Price | Quantity | SubTotal | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | AB0032 | 32ml | 2 pcs | Aluminum alloy / Stainless steel | Yes | Yes | Bladder type compensation | 10000m | 0.08 × 0.04 × 0.04 m | 0.12 kg | Original price was: $240.00.$180.00Current price is: $180.00. | $ | ||
 | AB0130 | 130ml | 5 pcs | Aluminum alloy / Stainless steel | Yes | Yes | Bladder type compensation | 10000m | 0.12 × 0.06 × 0.06 m | 0.46 kg | Original price was: $427.00.$320.00Current price is: $320.00. | $ | ||
 | AB0800 | 800ml | 2 pcs | Aluminum alloy / Stainless steel | Yes | Yes | Bladder type compensation | 10000m | 0.18 × 0.09 × 0.09 m | 1.5 kg | Original price was: $1,000.00.$750.00Current price is: $750.00. | $ |
The AB series is a professional line of deep-sea oil compensation units designed for underwater hydraulic and lubrication systems of ROVs, AUVs and deep-sea submersibles.
It adopts a built-in compressed bladder structure to ensure reliable sealing performance under extreme deep-sea high-pressure conditions.
A built-in compression spring provides stable preload pressure, keeping internal compensation pressure higher than external water pressure to effectively prevent seawater backflow.
The compensator is equipped with an integrated oil leakage alarm system that triggers an alarm signal immediately when oil leakage is detected.
The alarm signal feeds back to the control system and activates the emergency protection mechanism, greatly improving the reliability of the entire underwater system.
This series features compact structure and ultra-high pressure resistance, supporting a maximum operating depth of up to 10000m.
It offers multiple specifications including 32ml, 130ml and 800ml compensation volumes, with 2-port and 5-port configuration options.
Housing material is available in aluminum alloy or stainless steel to meet different corrosion resistance and weight requirements.
Fully customized solutions for compensation volume, port configuration and depth rating are available upon customer request.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Compensation Volume | 130ml, 32ml, 800ml |
| Number of Ports | 2 pcs, 5 pcs |
| Housing Material | Aluminum alloy / Stainless steel |
| Built-in Preload | Yes |
| Oil Leakage Alarm | Yes |
| Compensation Method | Bladder type compensation |
| Maximum Operating Depth | 10000m |
