$2,200.00–$98,000.00Price range: $2,200.00 through $98,000.00
Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.
Available Options
Thumbnail
SKU
Bollard Pull
Rated Power
Maximum Power
Rated Voltage
Rated Speed
Rated Current
Material
Max Operating Depth
Dimensions
Weight
Price
Quantity
SubTotal
AWP1112
11kgf
500W
700W
48/110/300VDC
2300rpm
10A
Aluminum Alloy / Stainless Steel
0~6000m
0.22 × 0.12 × 0.12 m
3.2 kg
$2,820.00Original price was: $2,820.00.$2,200.00Current price is: $2,200.00.
$
AWP0304k
300kgf
30kW
50kW
300/600VDC
2000rpm
94A
Aluminum Alloy / Stainless Steel
0~6000m
0.75 × 0.4 × 0.4 m
55 kg
$25,000.00Original price was: $25,000.00.$19,500.00Current price is: $19,500.00.
$
AWP1604k
1600kgf
250kW
300kW
600VDC
2300rpm
420A
Aluminum Alloy / Stainless Steel
0~6000m
1.6 × 0.65 × 0.65 m
180 kg
$126,000.00Original price was: $126,000.00.$98,000.00Current price is: $98,000.00.

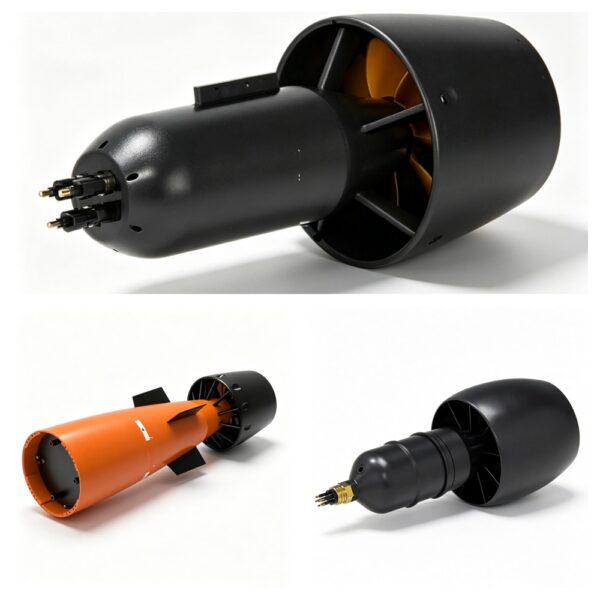

The AWP series offers a comprehensive range of general-purpose underwater pump-jet thrusters for professional marine robotics and propulsion systems.
It covers bollard pull ratings from 11kgf to 1600kgf with rated power from 500W to 250kW to suit small to large underwater and surface vehicles.
Adopts optimized rotor and stator hydrodynamics with NACA airfoil structure, delivering excellent low-noise performance and cavitation resistance for deep-sea operation.
Features torque-balanced rear stator design, eliminating roll effect and making it ideal for single-thruster power layout systems.
Equipped with high-performance flat-wire DC motors on medium and large models, ensuring high stability, efficiency and thrust density.
Constructed with hard-anodized aluminum alloy and stainless steel, with fiber-reinforced rotors and ducts for superior corrosion resistance in long-term seawater service.
All models are rated for 6000m maximum operating depth, supporting both built-in and external driver configurations for flexible integration.
Full customization is available for mechanical interface, voltage and control protocol to match specific project requirements.
Weight
N/A
Dimensions
N/A
Bollard Pull
11kgf, 1600kgf, 300kgf
Rated Power
250kW, 30kW, 500W
Maximum Power
300kW, 50kW, 700W
Rated Voltage
300/600VDC, 48/110/300VDC, 600VDC
Rated Speed
2000rpm, 2300rpm
Rated Current
10A, 420A, 94A
Material
Aluminum Alloy / Stainless Steel
Max Operating Depth
0~6000m
