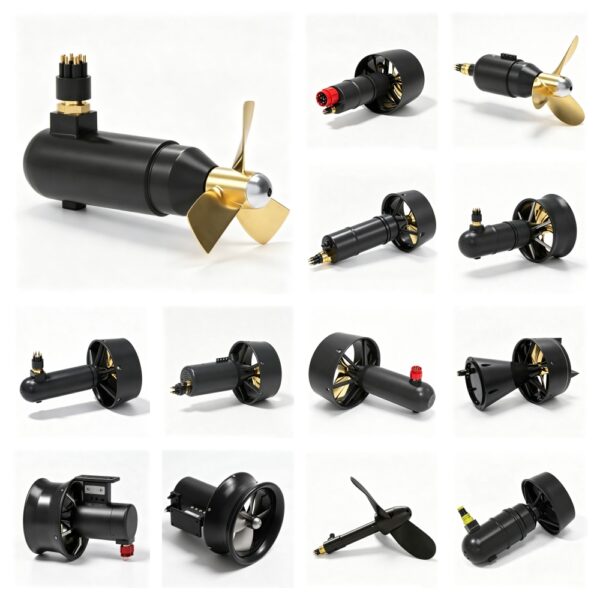

AW Series Industrial Underwater Propeller Thrusters

AW Series Industrial Underwater Propeller Thrusters

Full lineup of 2 – 250kgf bollard pull thrusters, 6000m depth rated, for ROV, AUV and USV marine propulsion

SKU: AW Category: Tags: , , , , , , ,

Price range: $320.00 through $32,500.00

Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.

Guaranteed Safe Checkout

Available Options

ThumbnailSKUBollard PullRated PowerMaximum PowerRated VoltageRated CurrentMaximum CurrentRated SpeedDrive ConfigurationMaterialMax Operating DepthDimensionsWeightPriceQuantity SubTotal
AWT302kgf10W30W12/24VDC0.4A1.7A1500rpmExternal driverAluminum Alloy / Stainless Steel0~6000m0.12 × 0.05 × 0.05 m1.1 kg Original price was: $410.00.Current price is: $320.00.

$

AW5105kgf170W220W24VDC8A10A1500rpmBuilt-in / External driverAluminum Alloy / Stainless Steel0~6000m0.15 × 0.06 × 0.06 m1.05 kg Original price was: $1,090.00.Current price is: $850.00.

$

AW5188kgf120W150W12/24/300VDC10A13A1500rpmBuilt-in driverAluminum Alloy / Stainless Steel0~6000m0.16 × 0.07 × 0.07 m1.3 kg Original price was: $1,410.00.Current price is: $1,100.00.

$

AW121212kgf500W630W48/110/300VDC10.5A13A1500rpmBuilt-in driverAluminum Alloy / Stainless Steel0~6000m0.18 × 0.08 × 0.08 m1.6 kg Original price was: $2,370.00.Current price is: $1,850.00.

$

AW151515kgf800W1000W110VDC7.5A10A1500rpmExternal driverAluminum Alloy / Stainless Steel0~6000m0.2 × 0.09 × 0.09 m1.9 kg Original price was: $3,080.00.Current price is: $2,400.00.

$

AW251525kgf1500W1800W110VDC13.6A16.4A1500rpmExternal driverAluminum Alloy / Stainless Steel0~6000m0.25 × 0.12 × 0.12 m4 kg Original price was: $4,870.00.Current price is: $3,800.00.

$

AW252025kgf1200W1800W110/300/600VDC2A2.5A1500rpmBuilt-in driverAluminum Alloy / Stainless Steel0~6000m0.24 × 0.11 × 0.11 m6 kg Original price was: $4,490.00.Current price is: $3,500.00.

$

AW352135kgf1500W2000W110/300VDC13.6A16.4A1700rpmBuilt-in driverAluminum Alloy / Stainless Steel0~6000m0.28 × 0.13 × 0.13 m5.8 kg Original price was: $5,900.00.Current price is: $4,600.00.

$

AW602460kgf2000W2800W110/300/600VDC18A20A1600rpmBuilt-in driverAluminum Alloy / Stainless Steel0~6000m0.32 × 0.16 × 0.16 m12.6 kg Original price was: $9,230.00.Current price is: $7,200.00.

$

AW803080kgf2800W3700W300/600VDC10A21A1600rpmBuilt-in driverAluminum Alloy / Stainless Steel0~6000m0.38 × 0.18 × 0.18 m9.5 kg Original price was: $12,600.00.Current price is: $9,800.00.

$

AW10030100kgf4500W6000W300/600VDC15A20A1600rpmBuilt-in driverAluminum Alloy / Stainless Steel0~6000m0.42 × 0.2 × 0.2 m17 kg Original price was: $17,300.00.Current price is: $13,500.00.

$

AW13030130kgf7000W10kW300/600VDC15A16A1600rpmBuilt-in driverAluminum Alloy / Stainless Steel0~6000m0.48 × 0.22 × 0.22 m16.5 kg Original price was: $23,300.00.Current price is: $18,200.00.

$

AW25040250kgf13kW16kW300/600VDC21A27A1600rpmExternal driverAluminum Alloy / Stainless Steel0~6000m0.65 × 0.3 × 0.3 m32.5 kg Original price was: $41,700.00.Current price is: $32,500.00.

$

The AW series provides a comprehensive range of high-performance underwater propeller thrusters engineered for professional marine robotics applications.
It covers bollard pull ratings from 2kgf to 250kgf with rated power from 10W to 13kW to suit various vehicle sizes and mission profiles.
Multiple voltage options are available from 12VDC up to 600VDC, with both built-in and external driver configurations for flexible system integration.
Adopts direct-drive motor technology with optimized hydrodynamics, delivering high propulsion efficiency and low-noise operation for long-endurance missions.
Constructed with hard-anodized aluminum alloy and stainless steel, offering excellent corrosion resistance for long-term seawater service.
Features reliable sealing solutions including self-lubricating and self-compensating oil-filled seals, with MTBF up to 1000 hours for maintenance-free operation.
All models are rated for maximum operating depth up to 6000m, suitable for both shallow water inspection and deep-sea exploration.
Full customization is supported to meet specific project requirements for mechanical interface, voltage and control protocol.

Weight N/A
Dimensions N/A
Bollard Pull

100kgf, 12kgf, 130kgf, 15kgf, 250kgf, 25kgf, 2kgf, 35kgf, 5kgf, 60kgf, 80kgf, 8kgf
Rated Power

10W, 1200W, 120W, 13kW, 1500W, 170W, 2000W, 2800W, 4500W, 500W, 7000W, 800W
Maximum Power

1000W, 10kW, 150W, 16kW, 1800W, 2000W, 220W, 2800W, 30W, 3700W, 6000W, 630W
Rated Voltage

110/300/600VDC, 110/300VDC, 110VDC, 12/24/300VDC, 12/24VDC, 24VDC, 300/600VDC, 48/110/300VDC
Rated Current

0.4A, 10.5A, 10A, 13.6A, 15A, 18A, 21A, 2A, 7.5A, 8A
Maximum Current

1.7A, 10A, 13A, 16.4A, 16A, 2.5A, 20A, 21A, 27A
Rated Speed

1500rpm, 1600rpm, 1700rpm
Drive Configuration

Built-in / External driver, Built-in driver, External driver
Material

Aluminum Alloy / Stainless Steel
Max Operating Depth

0~6000m
