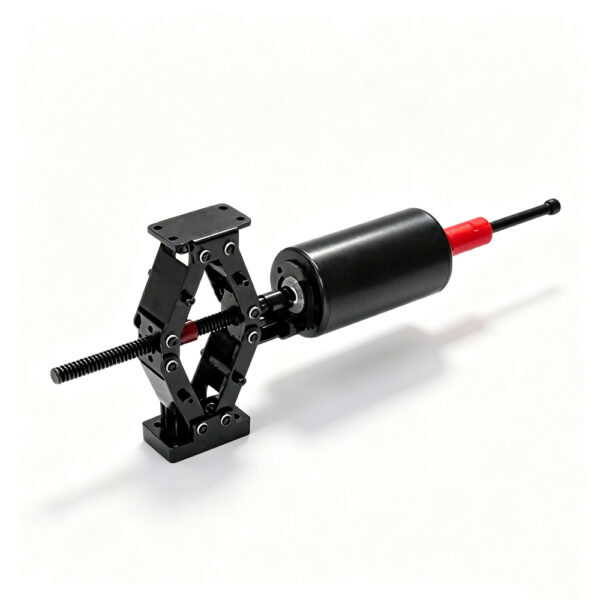

ASJ-01 Underwater Lifting Device | 9Nm 60mm Stroke | 24VDC CAN Control | 300m Depth Rated
Compact precision underwater lifting actuator with 9Nm torque, 60mm vertical stroke, CAN bus control and 300m depth rating for ROV payload and subsea equipment adjustment.
$640.00Original price was: $640.00.$480.00Current price is: $480.00.
Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.
The ASJ-01 is a precision underwater lifting device designed for vertical height adjustment of subsea detection equipment, ROV payloads and underwater instrumentation.
It operates on 24VDC power supply with 84W rated power, delivering 9Nm rated torque for stable and reliable lifting output.
It supports a maximum lifting height of 60mm, meeting the precision vertical adjustment requirements of compact underwater equipment.
It adopts CAN communication interface, enabling real-time lifting control, position feedback and operating status monitoring.
With a maximum operating depth of 300m, it features a fully sealed pressure-resistant structure for long-term stable underwater operation.
The rugged sealed design ensures excellent waterproof performance and corrosion resistance in both freshwater and marine environments.
Weight
15 kg
Dimensions
0.145 × 0.04 × 0.07 m
Rated Voltage
24VDC
Rated Power
84W
Rated Torque
9Nm
Maximum Lifting Height
60mm
Communication Interface
CAN
Maximum Operating Depth
300m
