Industrial underwater track drive series with 55Nm/80Nm torque options, CAN control, 300V power supply, 300m depth rating for tracked ROV and underwater robotic platforms.
$720.00–$850.00Price range: $720.00 through $850.00
Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.
Available Options
Thumbnail
SKU
Dimensions
Rated Voltage
Rated Power
Rated Torque
Rated Speed
Communication Interface
Maximum Operating Depth
Dimensions
Weight
Price
Quantity
SubTotal
DPQD-01-01
Φ138 x 357mm
300V
500W
80Nm
2800RPM
CAN
300m
0.357 × 0.138 × 0.138 m
10.5 kg
$1,130.00Original price was: $1,130.00.$850.00Current price is: $850.00.
$
DPQD-02-01
Φ116 x 405mm
300V
500W
55Nm
2800RPM
CAN
300m
0.405 × 0.116 × 0.116 m
9 kg
$960.00Original price was: $960.00.$720.00Current price is: $720.00.

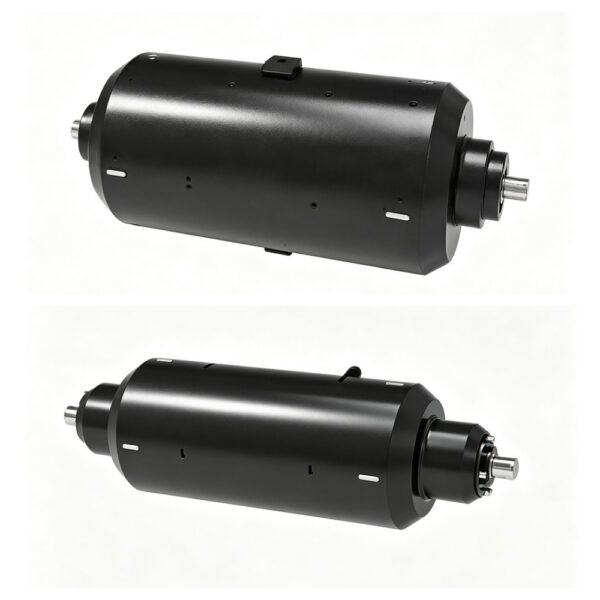

The DPQD series is a professional line of underwater tracked chassis drive units designed for tracked ROVs, underwater operation platforms and subsea robotic systems.
It is available in two torque specifications, 55Nm and 80Nm, to meet different load and traction requirements of underwater tracked chassis.
All models share unified core electrical parameters: 300V rated voltage, 500W rated power and 2800RPM rated speed for consistent and reliable driving performance.
It adopts CAN communication interface, enabling real-time speed regulation, torque control and operating status monitoring for seamless system integration.
With a maximum operating depth of 300m, the unit features a fully sealed pressure-resistant housing for stable long-term operation in underwater environments.
Its compact cylindrical design allows easy installation and integration with various underwater tracked chassis and robotic platforms.
Customized specifications such as output shaft and mounting interface are available upon customer request.
Weight
N/A
Dimensions
N/A
Dimensions
Φ116 x 405mm, Φ138 x 357mm
Rated Voltage
300V
Rated Power
500W
Rated Torque
55Nm, 80Nm
Rated Speed
2800RPM
Communication Interface
CAN
Maximum Operating Depth
300m
