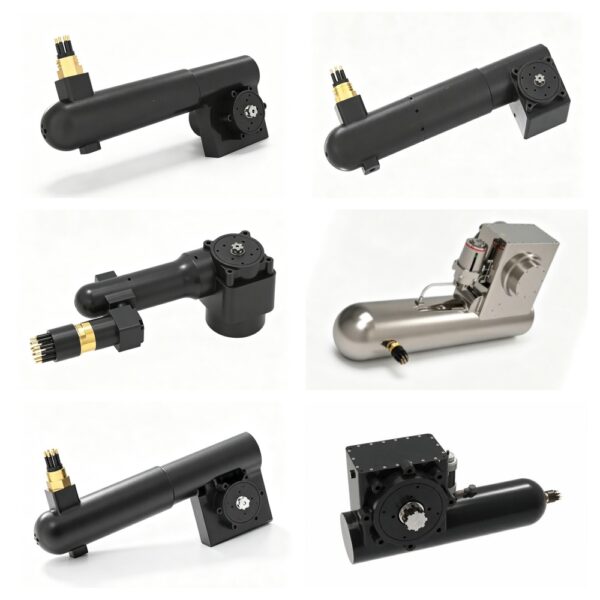

AD Series Underwater Servo Actuator | 0.5° Precision | 2000m Depth Rating
High-precision deep-sea servo series with wide torque range, mechanical self-locking, multi-protocol support, and fully customizable specifications for ROV/AUV applications.
$380.00–$19,200.00Price range: $380.00 through $19,200.00
Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.
Available Options
Thumbnail
SKU
Rated Torque
Rated Speed
Rated Voltage
Rated Power
Control Accuracy
Adjustable Angle
Drive Mode
Position Holding
Operating Depth
Dimensions
Weight
Price
Quantity
SubTotal
AD2003
3Nm
60°/s
24VDC
20W
0.5°
+/-30° (adjustable)
External drive
Power-off self-holding
0~2000m
0.1 × 0.05 × 0.05 m
0.8 kg
$507.00Original price was: $507.00.$380.00Current price is: $380.00.
$
AD2505
5Nm
15°/s
24VDC
25W
0.5°
+/-30° (adjustable)
Built-in drive
Power-off self-holding
0~2000m
0.12 × 0.06 × 0.06 m
1.3 kg
$653.00Original price was: $653.00.$490.00Current price is: $490.00.
$
AD4815
15Nm
40°/s
36VDC
48W
0.5°
+/-30° (adjustable)
Built-in drive
Power-off self-holding
0~2000m
0.14 × 0.07 × 0.065 m
1.5 kg
$960.00Original price was: $960.00.$720.00Current price is: $720.00.
$
AD5030
30Nm
20°/s
24VDC
50W
0.5°
+/-30° (adjustable)
Built-in drive
Power-off self-holding
0~2000m
0.15 × 0.075 × 0.07 m
1.6 kg
$1,270.00Original price was: $1,270.00.$950.00Current price is: $950.00.
$
AD0504k
450Nm
7°/s
48VDC
500W
0.5°
+/-35° (adjustable)
Built-in drive
Power-off self-holding
0~2000m
0.4 × 0.2 × 0.18 m
30 kg
$7,470.00Original price was: $7,470.00.$5,600.00Current price is: $5,600.00.
$
AD2k
2000Nm
5°/s
600VDC
1000W
0.5°
+/-30° (adjustable)
Built-in drive
Power-off self-holding
0~2000m
0.6 × 0.3 × 0.25 m
49 kg
$25,600.00Original price was: $25,600.00.$19,200.00Current price is: $19,200.00.
The AD series underwater servo is a high-precision angular output device widely used in underwater vehicles such as AUVs, ROVs and deep-sea submersible equipment.
The servo is built with a dual angle feedback system to deliver precise control over the rotation angle.
It is equipped with a mechanical self-locking function, enabling position holding during power failure and position reading after system restart.
This servo series features compact structure, high angular accuracy, wide torque range and excellent deep-sea pressure resistance.
It supports multiple communication protocols including RS485, RS422, RS232 and CAN for flexible system integration.
Parameters such as voltage, depth rating and mechanical connection can be customized to meet specific project requirements.
Tailored solutions are available for custom underwater application scenarios.
Weight
N/A
Dimensions
N/A
Rated Torque
15Nm, 2000Nm, 30Nm, 3Nm, 450Nm, 5Nm
Rated Speed
15°/s, 20°/s, 40°/s, 5°/s, 60°/s, 7°/s
Rated Voltage
24VDC, 36VDC, 48VDC, 600VDC
Rated Power
1000W, 20W, 25W, 48W, 500W, 50W
Control Accuracy
0.5°
Adjustable Angle
+/-30° (adjustable), +/-35° (adjustable)
Drive Mode
Built-in drive, External drive
Position Holding
Power-off self-holding
Operating Depth
0~2000m
