$2,850.00–$78,500.00Price range: $2,850.00 through $78,500.00
Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.
Available Options
Thumbnail
SKU
Rated Power
Maximum Power
Rated Voltage
Cruising Speed
Maximum Speed
Material
Working Depth
Dimensions
Weight
Price
Quantity
SubTotal
AWPT324
200W
4.5kW
110VDC
4kn
12kn
Aluminum Alloy
0~2000m
0.65 × 0.324 × 0.324 m
7.5 kg
$3,650.00Original price was: $3,650.00.$2,850.00Current price is: $2,850.00.
$
AWPT533-4
280W
5kW
110/300VDC
4kn
6kn
Aluminum Alloy
0~2000m
1 × 0.533 × 0.533 m
18 kg
$4,870.00Original price was: $4,870.00.$3,800.00Current price is: $3,800.00.
$
AWPT533-42
210W
1.6kW
110/300VDC
3kn
10kn
Aluminum Alloy
0~2000m
0.95 × 0.533 × 0.533 m
16 kg
$4,360.00Original price was: $4,360.00.$3,400.00Current price is: $3,400.00.
$
AWPT600
400W
2kW
300VDC
4kn
8kn
Aluminum Alloy
0~2000m
1.1 × 0.6 × 0.6 m
25 kg
$5,900.00Original price was: $5,900.00.$4,600.00Current price is: $4,600.00.
$
AWPT600-2
300W
5kW
110/300VDC
3kn
6kn
Aluminum Alloy
0~2000m
1.15 × 0.6 × 0.6 m
28 kg
$6,670.00Original price was: $6,670.00.$5,200.00Current price is: $5,200.00.
$
AWPT900
600W
35kW
600VDC
3kn
12kn
Aluminum Alloy
0~2000m
1.6 × 0.9 × 0.9 m
70 kg
$16,400.00Original price was: $16,400.00.$12,800.00Current price is: $12,800.00.
$
AWPT3000
10kW
250kW
600VDC
4kn
12kn
Titanium Alloy
0~2000m
2.2 × 1.2 × 1.2 m
280 kg
$101,000.00Original price was: $101,000.00.$78,500.00Current price is: $78,500.00.

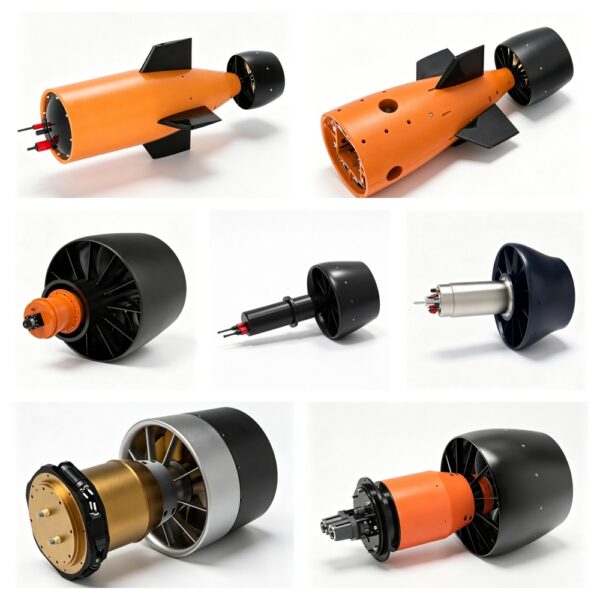

The AWPT series pump jet thrusters are engineered specifically for autonomous underwater vehicles (AUVs), delivering reliable and efficient propulsion for deep-sea exploration and operation missions.
This product series covers a wide range of power specifications, with rated power from 200W to 10kW and maximum output power up to 250kW to accommodate various AUV sizes and application scenarios.
Housing materials include high-strength aluminum alloy and corrosion-resistant titanium alloy, with all models certified for a maximum working depth of 2000 meters.
The thrusters support multiple voltage input options including 110VDC, 110/300VDC, 300VDC and 600VDC, with cruising speeds of 3-4kn and maximum speeds up to 12kn.
The integrated pump-jet design reduces operational noise and improves propulsion efficiency, making it ideal for long-endurance underwater missions.
Weight
N/A
Dimensions
N/A
Rated Power
10kW, 200W, 210W, 280W, 300W, 400W, 600W
Maximum Power
1.6kW, 250kW, 2kW, 35kW, 4.5kW, 5kW
Rated Voltage
110/300VDC, 110VDC, 300VDC, 600VDC
Cruising Speed
3kn, 4kn
Maximum Speed
10kn, 12kn, 6kn, 8kn
Material
Aluminum Alloy, Titanium Alloy
Working Depth
0~2000m
