$28,500.00–$380,000.00Price range: $28,500.00 through $380,000.00
Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.
Available Options
Thumbnail
SKU
Hull Diameter
Hull Length
Air Weight
Max Operating Depth
Max Speed
Battery Capacity
Endurance at Light Payload
Endurance at Heavy Payload
Navigation Accuracy
Heading Accuracy
Depth?keeping Accuracy
Altitude?keeping Accuracy
Dimensions
Weight
Price
Quantity
SubTotal

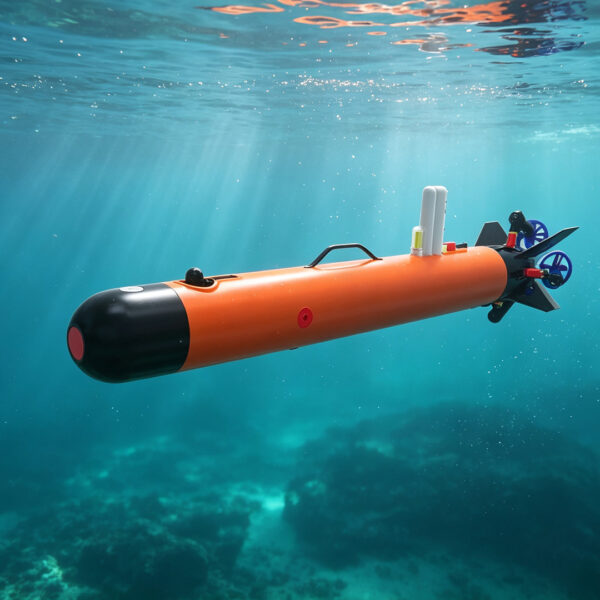

AF150
150mm
1.4~2.6m (subject to configuration)
21~41kg (subject to configuration)
100m / 200m optional
0~6kn (higher speed customizable)
0.75kWh (expandable with 3 battery modules)
6~7h@3kn
4~5h@3kn
0.5~5% CEP (subject to navigation configuration)
+/-1°
+/-0.1m
+/-0.1m (flat terrain)
1.4 × 0.15 × 0.15 m
21 kg
$36,500.00Original price was: $36,500.00.$28,500.00Current price is: $28,500.00.
$

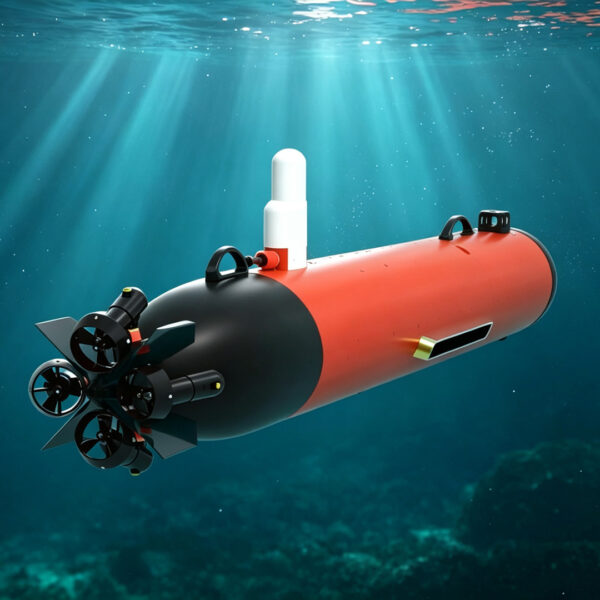

AF200
200mm
1.6~3.2m (subject to configuration)
48~100kg (subject to configuration)
200m / 500m / 1000m optional
0~6kn (higher speed customizable)
1.5kWh (expandable with 2 battery modules)
7~8h@3kn
5~6h@3kn
0.5~2% CEP (subject to navigation configuration)
+/-0.5°
+/-0.1m
+/-0.1m (flat terrain)
1.6 × 0.2 × 0.2 m
48 kg
$60,000.00Original price was: $60,000.00.$46,800.00Current price is: $46,800.00.
$

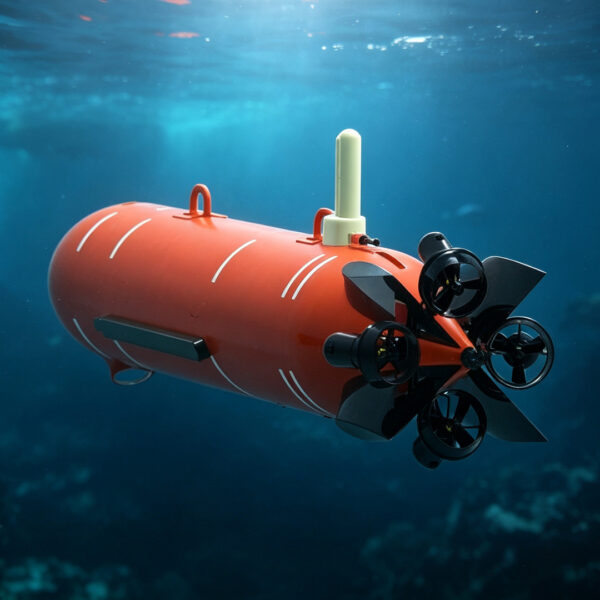

AF324
324mm
2.0~3.2m (subject to configuration)
160~260kg (subject to configuration)
200m / 500m / 1000m optional
0~6kn (higher speed customizable)
6kWh (expandable with 3 battery modules)
9~10h@3kn
7~8h@3kn
0.1~1% CEP (subject to navigation configuration)
+/-0.5°
+/-0.1m
+/-0.1m (flat terrain)
2 × 0.324 × 0.324 m
160 kg
$118,000.00Original price was: $118,000.00.$92,000.00Current price is: $92,000.00.
$

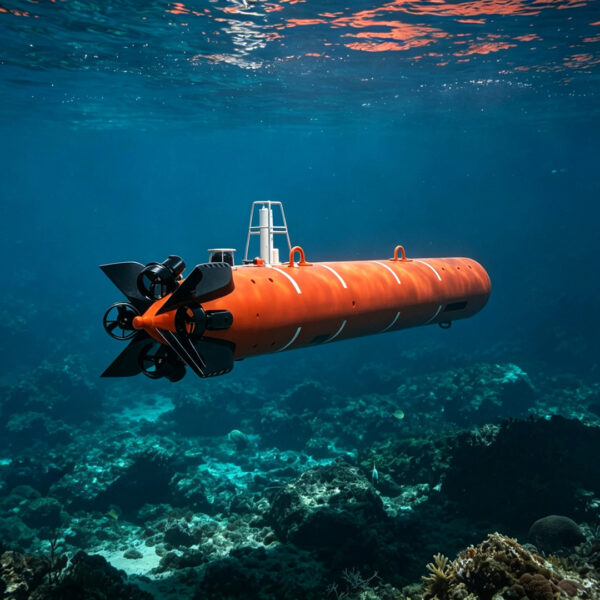

AF350
350mm
3.5~5.5m (subject to configuration)
315~510kg (subject to configuration)
1000m / 3000m / 4500m optional
0~5kn (higher speed customizable)
6kWh (expandable with 2 battery modules)
20~21h@3kn
16~17h@3kn
0.1~1% CEP (subject to navigation configuration)
+/-0.5°
+/-0.1m
+/-0.1m (flat terrain)
3.5 × 0.35 × 0.35 m
315 kg
$237,000.00Original price was: $237,000.00.$185,000.00Current price is: $185,000.00.
$

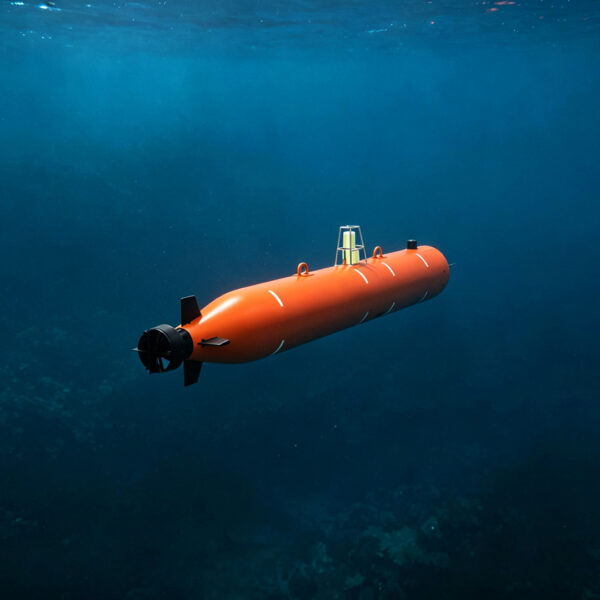

AF533
533mm
3.6~7.0m (subject to configuration)
670~1500kg (subject to configuration)
500m / 1000m / 4500m optional
0~6kn (higher speed customizable)
14kWh power pack + 4kWh control pack (expandable with 2 packs)
12~13h@3kn
9~10h@3kn
0.1~1% CEP (subject to navigation configuration)
+/-0.5°
+/-0.1m
+/-0.1m (flat terrain)
3.6 × 0.533 × 0.533 m
670 kg
$487,000.00Original price was: $487,000.00.$380,000.00Current price is: $380,000.00.

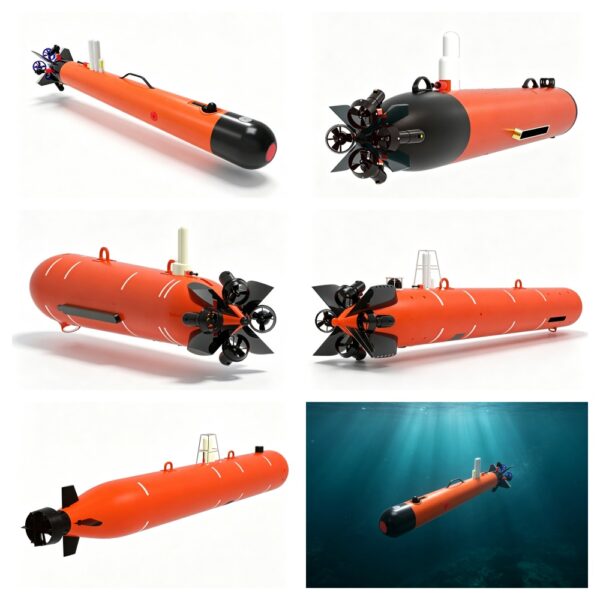

General Description:
The AF series is a versatile modular autonomous underwater vehicle platform engineered for professional hydrographic survey, underwater inspection and oceanographic research.
Offers 5 standard hull diameters from 150mm to 533mm, with operating depth options ranging from 100m to 4500m to match diverse mission profiles.
Integrates high-precision GNSS and fiber-optic inertial navigation, with optional DVL, USBL and acoustic positioning systems for enhanced accuracy.
Supports a broad portfolio of payloads including sonar systems, imaging sensors, water quality instruments and custom sensors for specialized tasks.
Delivers long endurance up to 21 hours at 3 knots, with expandable battery configurations to extend operational duration.
Features multiple communication modes including data radio, WiFi, 4G, satellite and optional underwater acoustic communication.
Suitable for coastal survey, pipeline inspection, environmental monitoring, search & recovery and deep-sea scientific research applications.
Navigation System:
GNSS + FOG INS + DVL + USBL; optional other acoustic positioning
Communication Mode:
Data radio, WiFi, 4G, satellite, underwater acoustic (optional)
Basic Functions:
Heading hold navigation, depth hold navigation, altitude hold navigation, pre-programmed route navigation, surface remote control, video acquisition, wireless communication, bathymetric survey
Expandable Functions:
Underwater remote control, sonar towing, vertical dive, horizontal side movement
1.4~2.6m (subject to configuration), 1.6~3.2m (subject to configuration), 2.0~3.2m (subject to configuration), 3.5~5.5m (subject to configuration), 3.6~7.0m (subject to configuration)
Air Weight
160~260kg (subject to configuration), 21~41kg (subject to configuration), 315~510kg (subject to configuration), 48~100kg (subject to configuration), 670~1500kg (subject to configuration)
0.75kWh (expandable with 3 battery modules), 1.5kWh (expandable with 2 battery modules), 14kWh power pack + 4kWh control pack (expandable with 2 packs), 6kWh (expandable with 2 battery modules), 6kWh (expandable with 3 battery modules)
