$11,800.00–$165,000.00Price range: $11,800.00 through $165,000.00
Notes:
1. Online payment is not supported as the products are high-value and customized items.
2. All prices are EXW prices and for reference only.
3. Final quotation depends on your customized specifications and order quantity.
4. OEM & ODM customization available.
Available Options
Thumbnail
SKU
Max Operating Depth
Current Resistance
Thruster Configuration
Camera Configuration
Power Supply Voltage
Power Rating
Application Scenarios
Dimensions
Weight
Price
Quantity
SubTotal
AG30
0~300m
3 knots
8 units x 5kgf
1-channel 1080P
380VAC
3kW
Compact Observation Class / Civil Aquaculture & Salvage
0.46 × 0.58 × 0.45 m
30 kg
$15,100.00Original price was: $15,100.00.$11,800.00Current price is: $11,800.00.
$
AG50
0~300m
3 knots
6 units x 12kgf
3-channel 1080P
380VAC
3kW
Emergency Rescue Specialized
0.74 × 0.57 × 0.57 m
50 kg
$34,000.00Original price was: $34,000.00.$26,500.00Current price is: $26,500.00.
$
AG70
0~300m
3 knots
8 units x 12kgf
3-channel 1080P
380VAC
5kW
Medium Work Class / Rescue / Water Conservancy / Search
1 × 0.66 × 0.58 m
70 kg
$53,800.00Original price was: $53,800.00.$42,000.00Current price is: $42,000.00.
$
AG400
0~300m
3 knots
4 units x 35kgf + 4 units x 60kgf
4-channel 1080P
380VAC
18kW
Offshore Work Class / Offshore Survey / Hull Inspection / Wind Farm Cleaning
1.42 × 1.08 × 1.06 m
380 kg
$212,000.00Original price was: $212,000.00.$165,000.00Current price is: $165,000.00.
General Description:

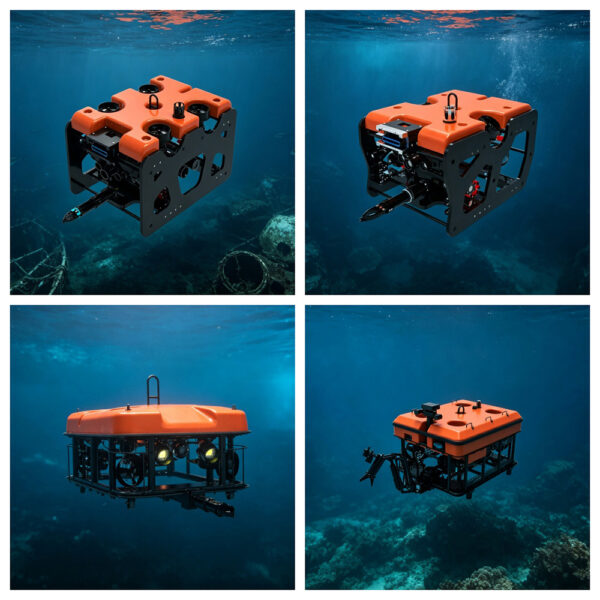

The AG series is a versatile portfolio of remotely operated underwater vehicles spanning compact observation to heavy-duty offshore work classes for comprehensive underwater solutions.
It includes 4 standard configurations with air weights ranging from 30kg to 380kg, all certified for 300m maximum operating depth and 3-knot current resistance.
Equipped with multi-thruster propulsion systems, delivering total thrust from 40kgf up to 380kgf to adapt to various water flow conditions.
Integrates 1 to 4 channels of 1080P high-definition cameras for real-time underwater visual monitoring and situational awareness.
Standard automatic functions include auto depth hold, auto heading hold and auto altitude hold, with optional upgrades for path tracking, dynamic positioning and target recognition.
Supports a broad range of optional payloads including forward-looking sonar, USBL positioning, manipulator arms, pan-tilt units and obstacle avoidance sonar.
Modular architecture enables easy maintenance, rapid upgrade and custom configuration for aquaculture, emergency rescue, water conservancy and offshore engineering applications.
Standard Auto Functions:
Auto Depth Hold, Auto Heading Hold, Auto Altitude Hold; Auto Depth Hold, Auto Heading Hold, Auto Altitude Hold, Path Tracking, Dynamic Positioning, Target Recognition
Optional Payloads:
Forward-looking Sonar, USBL, Manipulator Arm; Forward-looking Sonar, USBL, Pan-tilt Unit, Manipulator Arm; Forward-looking Sonar, Obstacle Avoidance Sonar, USBL, Pan-tilt Unit, Manipulator Arm
Weight
N/A
Dimensions
N/A
Max Operating Depth
0~300m
Current Resistance
3 knots
Thruster Configuration
4 units x 35kgf + 4 units x 60kgf, 6 units x 12kgf, 8 units x 12kgf, 8 units x 5kgf
Camera Configuration
1-channel 1080P, 3-channel 1080P, 4-channel 1080P
Power Supply Voltage
380VAC
Power Rating
18kW, 3kW, 5kW
Application Scenarios
Compact Observation Class / Civil Aquaculture & Salvage, Emergency Rescue Specialized, Medium Work Class / Rescue / Water Conservancy / Search, Offshore Work Class / Offshore Survey / Hull Inspection / Wind Farm Cleaning
